The entire formulation and excerpts from the solution appear below.

MODEL:

SETS:

  PERIODS: OBSERVED, PREDICT, ERROR;

  QUARTERS: SEASFAC;

ENDSETS



DATA:

  PERIODS = P1..P8;

  QUARTERS = Q1..Q4;

  OBSERVED = 10 14 12 19 14 21 19 26;

ENDDATA



MIN = @SUM( PERIODS: ERROR ^ 2);



@FOR( PERIODS: ERROR =

PREDICT - OBSERVED);



@FOR( PERIODS( P): PREDICT( P) =

SEASFAC( @WRAP( P, 4))

 * ( BASE + P * TREND));



@SUM( QUARTERS: SEASFAC) = 4;



@FOR( PERIODS: @FREE( ERROR);

@BND( -1000, ERROR, 1000));



END

Model: SHADES

Local optimal solution found.

Objective value:                      1.822561

Infeasibilities:                      0.000000

Total solver iterations:                    25

Elapsed runtime seconds:                  0.05



       Variable           Value

           BASE        9.718878

          TREND        1.553017

  OBSERVED( P1)        10.00000

  OBSERVED( P2)        14.00000

  OBSERVED( P3)        12.00000

  OBSERVED( P4)        19.00000

  OBSERVED( P5)        14.00000

  OBSERVED( P6)        21.00000

  OBSERVED( P7)        19.00000

  OBSERVED( P8)        26.00000

   PREDICT( P1)        9.311820

   PREDICT( P2)        14.10136

   PREDICT( P3)        12.85213

   PREDICT( P4)        18.80620

   PREDICT( P5)        14.44367

   PREDICT( P6)        20.93171

   PREDICT( P7)        18.40496

   PREDICT( P8)        26.13943

     ERROR( P1)      -0.6881796

     ERROR( P2)       0.1013638

     ERROR( P3)       0.8521268

     ERROR( P4)      -0.1938024

     ERROR( P5)       0.4436688

     ERROR( P6)      -0.6828722E-01

     ERROR( P7)      -0.5950374

     ERROR( P8)       0.1394325

   SEASFAC( Q1)       0.8261096

   SEASFAC( Q2)        1.099529

   SEASFAC( Q3)       0.8938789

   SEASFAC( Q4)        1.180482

Solution to SHADES

The solution is: TREND, 1.55; BASE, 9.72. The four seasonal factors are .826, 1.01, .894, and 1.18. The spring quarter seasonal factor is .826. In other words, spring sales are 82.6% of the average. The trend of 1.55 means, after the effects of season are taken into account, sales are increasing at an average rate of 1,550 sunglasses per quarter. As one would expect, a good portion of the error terms are negative, so it was crucial to use the @FREE function to remove the default lower bound of zero on ERROR.

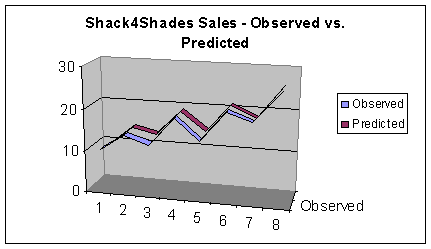

Our computed function offers a very good fit to the historical data as the following graph illustrates:

BMP00020

Using this function, we can compute the forecast for sales for the upcoming quarter (quarter 9). Doing so gives:

Predicted_Sales( 9)        =  Seasonal_Factor( 1) * ( Base + Trend * 9)

 =  0.826 * ( 9.72 + 1.55 * 9)

 =  19.55

Given this, inventory levels should be brought to a level sufficient to support an anticipated sales level of around 19,550 pairs of sunglasses.
