In this section, we will use Microsoft Visual C/C++ to create a 32-bit DLL that contains an @USER function to perform the square root function. This is very easy to do if we make use of the AppWizard in Visual C++ to build the base code for the DLL. Or, you can find the code for this example in the USER\VC++ subdirectory off of your main LINGO directory. To build the base code, start the Visual C++ Developer Studio and do the following:

1.Issue the File|New command.
2.You should now see a New dialog box. Select the Project Workspace options and then click OK.
3.You will now see a New Project Workspace dialog box. Give the project the name sqroot. In the Type box, select the MFC AppWizard (dll) option. Click on the Create button.
4.A new MFC AppWizard dialog box should appear. Simply click on the Finish button.
5.You should now see a New Project Information box containing a summary of the options selected for your project that resembles:

page359xp

Click the OK button to finish creating the base code for our DLL.

Now, edit the SQROOT.CPP file and add the modifications listed below in bold:

// sqroot.cpp : Defines the initialization

// routines for the DLL.

//

#include "stdafx.h"

#include "sqroot.h"

#ifdef _DEBUG

#define new DEBUG_NEW

#undef THIS_FILE

static char THIS_FILE[] = __FILE__;

#endif

/////////////////////////////////////////////////////

// CSqrootApp

BEGIN_MESSAGE_MAP(CSqrootApp, CWinApp)

//{{AFX_MSG_MAP(CSqrootApp)

// NOTE - the ClassWizard will add and

// remove mapping macros here.

// DO NOT EDIT what you see in these

// blocks of generated code!

//}}AFX_MSG_MAP

END_MESSAGE_MAP()

CSqrootApp::CSqrootApp()

{

// The constructor

  // Remove next line for a "quiet" version

  // of MyUser.DLL

  AfxMessageBox("@USER DLL installed");

}

CSqrootApp theApp;

#include <math.h>

extern "C" __declspec( dllexport)

void MyUser( int* pnNumberOfArgs,

 double* pdArgs, double* dResult)



// This is an @USER routine callable by LINGO. In

// this particular case we simply take the

// square root of the first argument.

  *dResult = sqrt( *pdArgs);

}

File: SQROOT.CPP

You should now be able to build the DLL. When Visual C++ completes the build, copy the SQROOT.DLL file to LINGO's startup directory (the one where LINGO15.EXE or LINGO64_15.EXE is located), and rename SQROOT.DLL to be MYUSER.DLL. Now, start LINGO and you should see the following dialog box confirming the DLL was successfully loaded:

page361axp

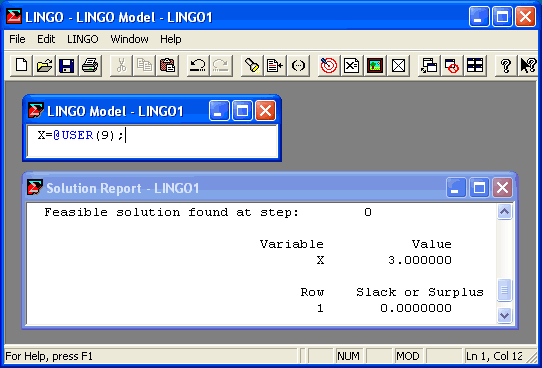

Input a small model to compute the square root of 9 and solve it to get the following results:

page361bxp

If you don’t have a copy of Visual C++, you may experiment with this @USER routine by copying the DLL supplied with LINGO into your LINGO startup directory. You can find the SQROOT.DLL file in the USER\VC++ subdirectory off the main LINGO directory.
